AMC
Universal Sensorless PM-Motor Control Driver. Any Motor. Any Inverter.
Your motor, fully known. From first connect to complete control.
Identify every parameter, tune every loop, watch every signal. Live.
AMC
Appcon Motor Control
Universal Sensorless PM-Motor Control Driver. Any Motor. Any Inverter.

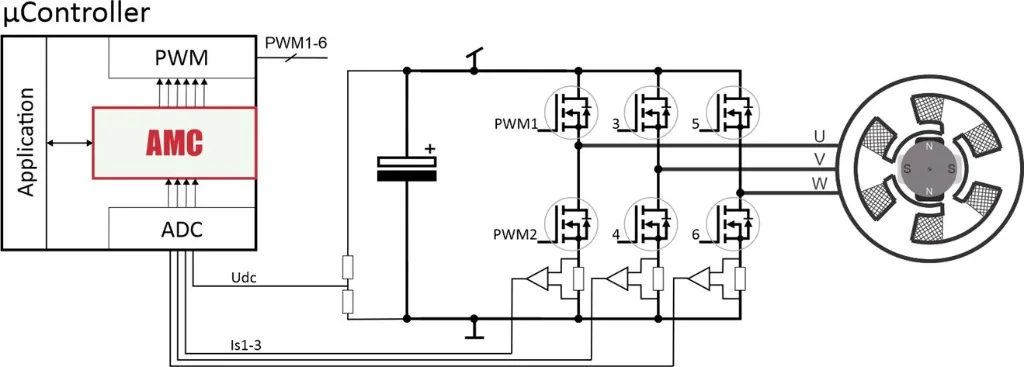

Appcon Motor Control (AMC) is a motor control driver software library designed for controlling permanent magnet motors in a wide range of drive applications. The library can be integrated directly into a customer's firmware, enabling reliable motor control with or without a position sensor.
AMC is a software-only solution that eliminates the need for a mechanical position sensor by accurately estimating motor speed and rotor position while maintaining performance comparable to sensored Field-Oriented Control (FOC).
The technology behind AMC is the result of more than 20 years of industrial experience in sensorless control of PMSM drives, with implementations running in products manufactured in millions of units every year.
Designed for practical use in real products, AMC combines high performance, robustness, and ease of integration. Features such as automatic motor identification allow developers to configure the control quickly, even without deep expertise in motor control.
As a plug-and-play control module, AMC integrates directly into existing drive software architectures, enabling rapid deployment of advanced motor control capabilities.
Why AMC
Easy integration in existing drive software
Clear interface definitions inspired by the AUTOSAR standard.
Optimization and version upgrades independent of the application
Validation via Software-in-the-Loop and with advanced evaluation boards.
One control software for all motors and inverters
Easy hardware migration and configuration for new motors.
Maximum flexibility for the application software
Easy and secure development of drive applications using AMC as the motor driver.
A proven solution for sensorless control of PMSM
- Scalable across all power ranges
- Maximum torque and dynamics from standstill to >100k RPM
- Automatic motor identification and controller parameter configuration
- Advanced features including battery current limitation
Sensorless algorithm
Sensorless FOC
No motor parameters needed in high-frequency injection
Full torque at standstill and low speeds
No additional hardware required
Superior performance compared to position sensors at high speeds, with smooth and accurate speed and position information
AMC vs. sensored solution
| Encoder-based FOC | AMC (sensorless) |
|---|---|
| Position sensor (encoder/resolver) required | No sensor; motor acts as sensor |
| Additional hardware cost and wiring | Software-only, no extra hardware |
| Sensor reliability and environmental limits | Fewer failure points, robust |
| Performance depends on sensor quality | Performance parity with sensored FOC |
